29" WHEELS // HARDTAIL // 150MM FRONT

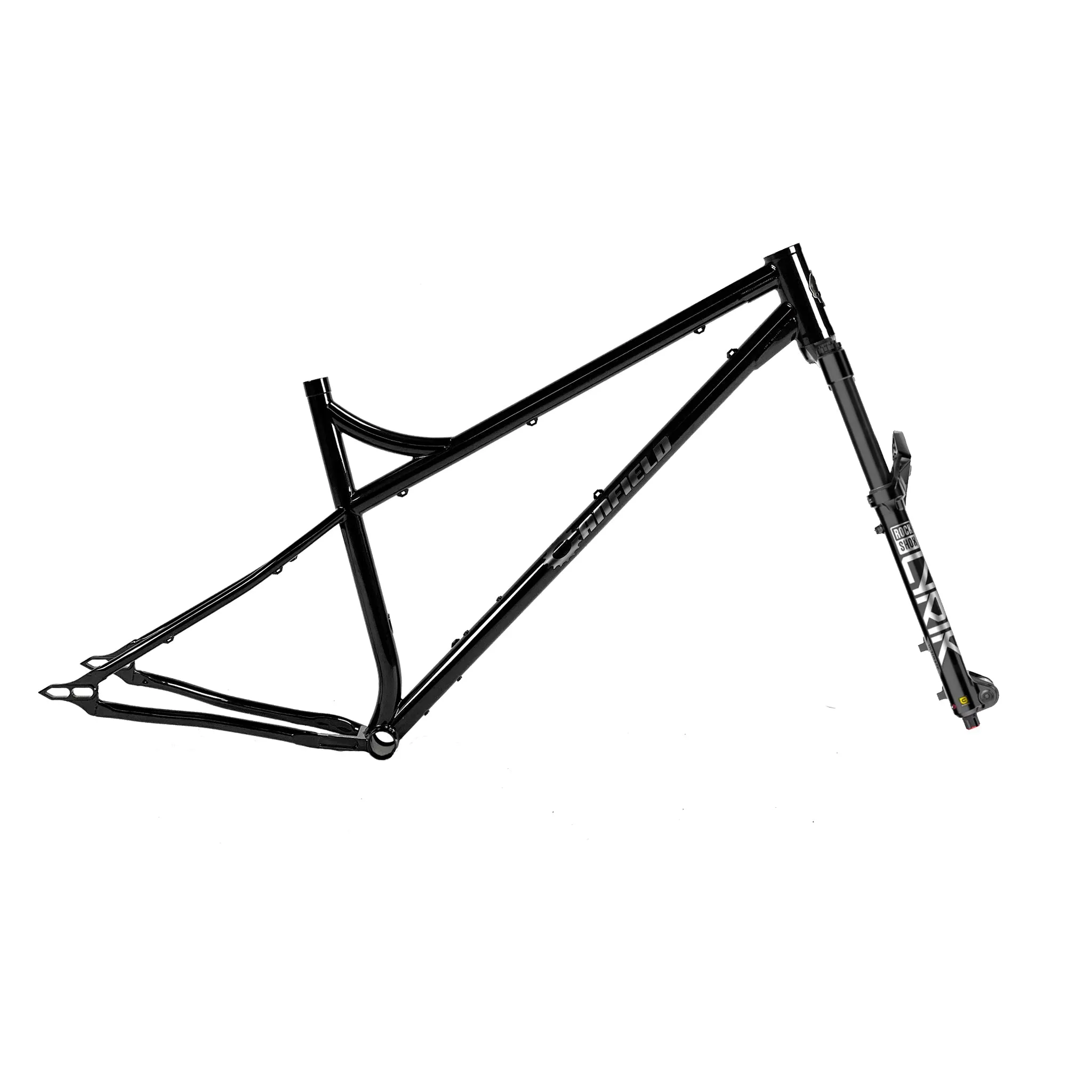

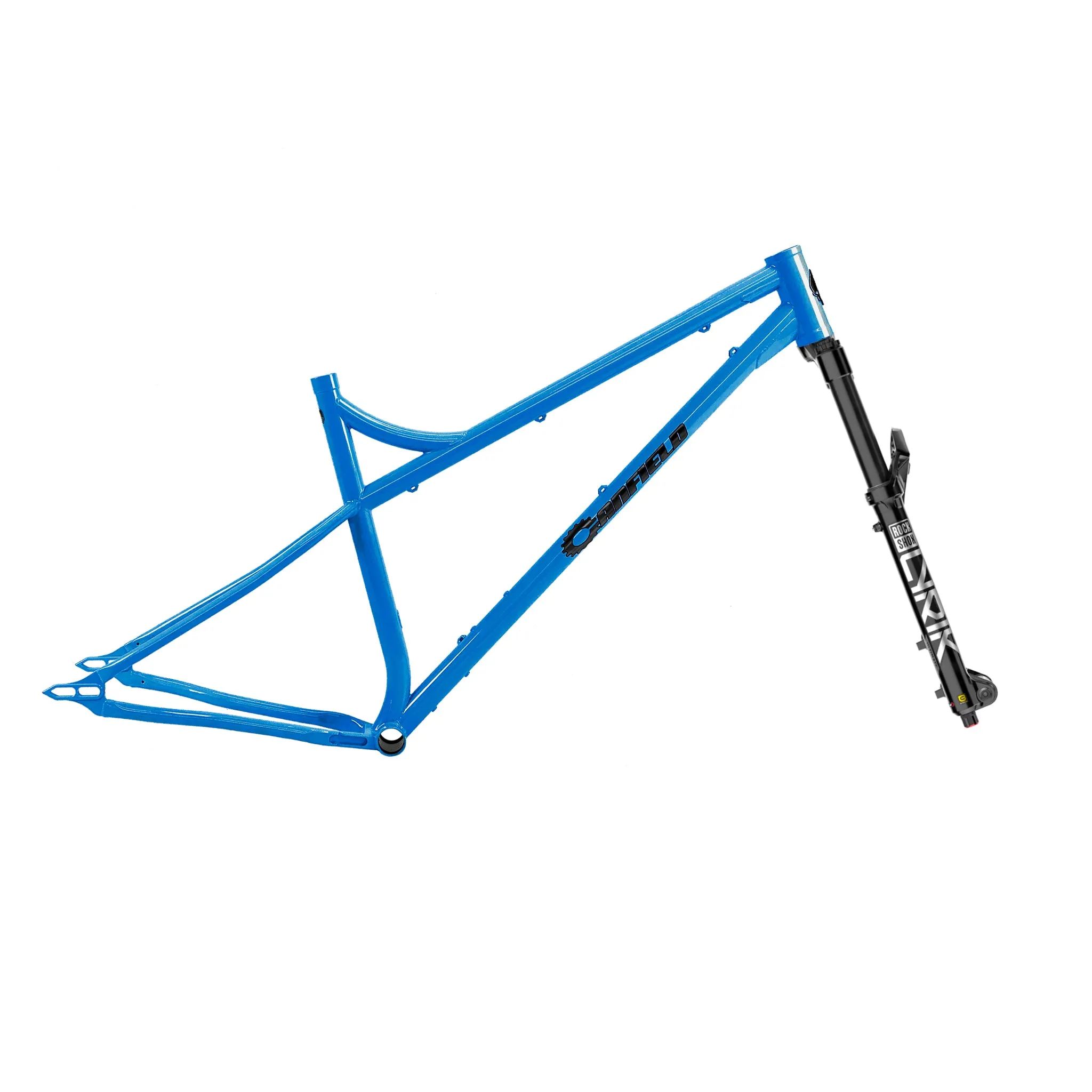

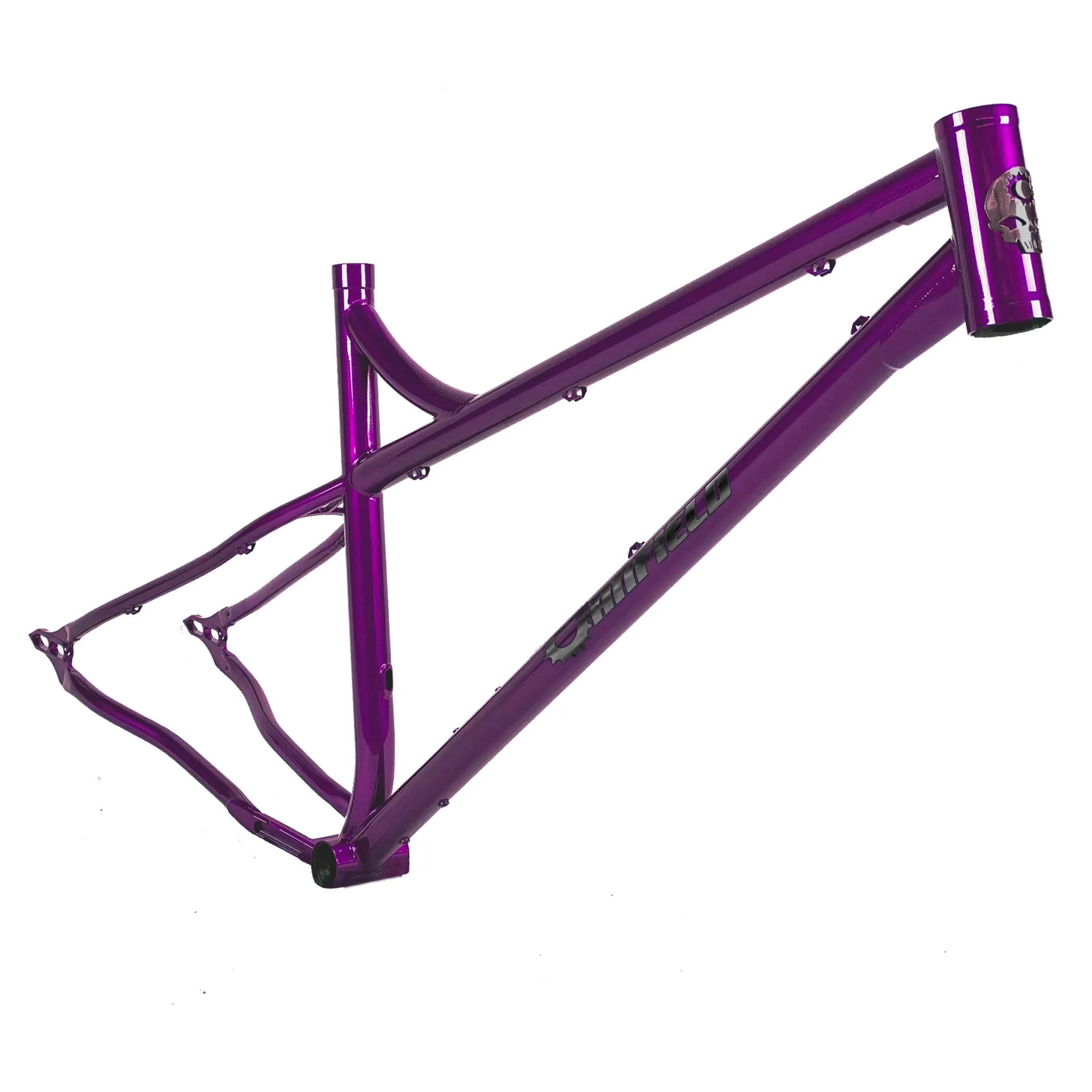

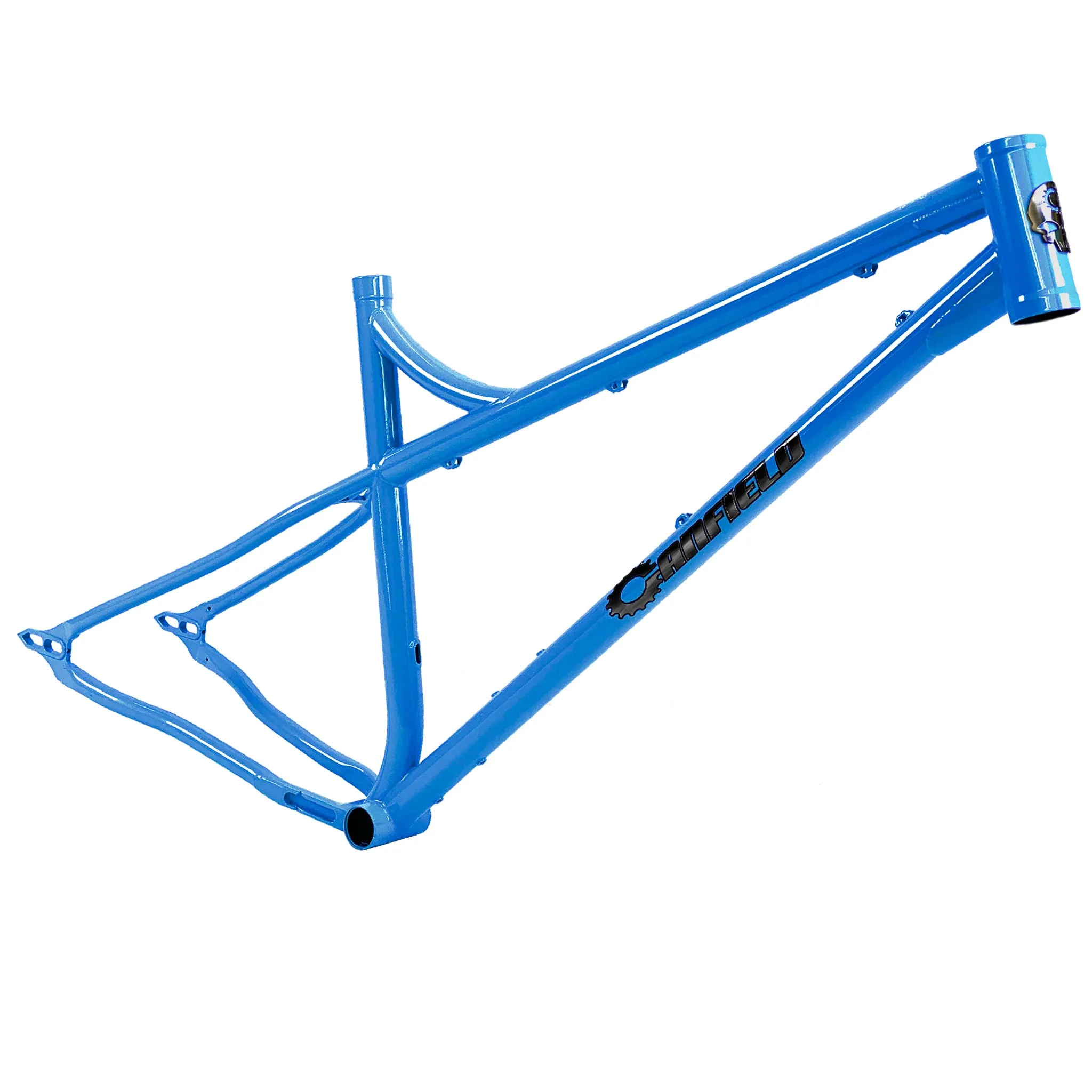

The original hardcore hardtail. Handcrafted in small batches, the Canfield Bikes Nimble 9 is a steel hardtail built to get rowdy. Combining the revered ride quality of 4130 chromoly steel with aggressive all-mountain geometry, the Nimble 9 challenges preconceptions of mountain bikes with both big wheels and rigid rear-ends.
FRAME FEATURES
- 29″ All Mountain
- 4130 chromoly steel
- Radial-bent seat stays for vertical compliance
- Increased reach and shorter seat tube
- 66° head angle (w/ 150mm fork)
- Recommended fork length: 140mm - 160mm
- Custom sliding Boost 148mm x 12mm rear dropouts, axle included
- 73mm BSA Threaded BB
- 30.9mm seat post
- 34.9 or 35mm clamp size
- Adjustable 16.33“ – 16.93” chainstays
- Brake mount: IS 160mm
- Singlespeed-able
- Stealth cable routing
- Two water bottle bosses
- Includes dropouts/derailleur hanger, rear axle and hardware
- Max. chainring size: 34t round / 32t oval
- Max. seatpost insertion: 200mm(S), 235(M), 275(L), 320(XL)
Full assembly is required on complete bikes.
Canfield Nimble 9 Geo
(Based on 150mm fork, 563mm Axle to Crown)
| Size | S | M | L | XL |
| Top Tube Length (Effective)* | 570mm | 597mm | 625mm | 652mm |
| Reach | 425mm | 450mm | 475mm | 500mm |
| Stack* | 634mm | 638mm | 648mm | 656mm |
| Standover Height* | 745mm | 780mm | 800mm | 830mm |
| Seat Tube Length | 370mm | 405mm | 445mm | 490mm |
| Wheel Base* | 1156mm | 1183mm | 1212mm | 1241mm |
| Head Tube Angle | 66° | 66° | 66° | 66° |
| Seat Tube Angle (Effective) | 77° | 77° | 77° | 77° |
| Chainstay Length | 415-430mm | 415-430mm | 415-430mm | 415-430mm |
| Bottom Bracket Height | 325mm | 325mm | 325mm | 325mm |
| Bottom Bracket Drop | 50mm | 50mm | 50mm | 50mm |
| Head Tube length | 100mm | 105mm | 115mm | 125mm |
*Geo based on 150mm travel fork. Static measurement (not sagged).
| SIZE | S | M | L | XL |
| RIDER HEIGHT | 5'2"-5'7" | 5'5"-5'11" | 5'9"-6'3" | 6'1"-6'6" |
*Photos are for illustration purposes. Final production details may vary.
